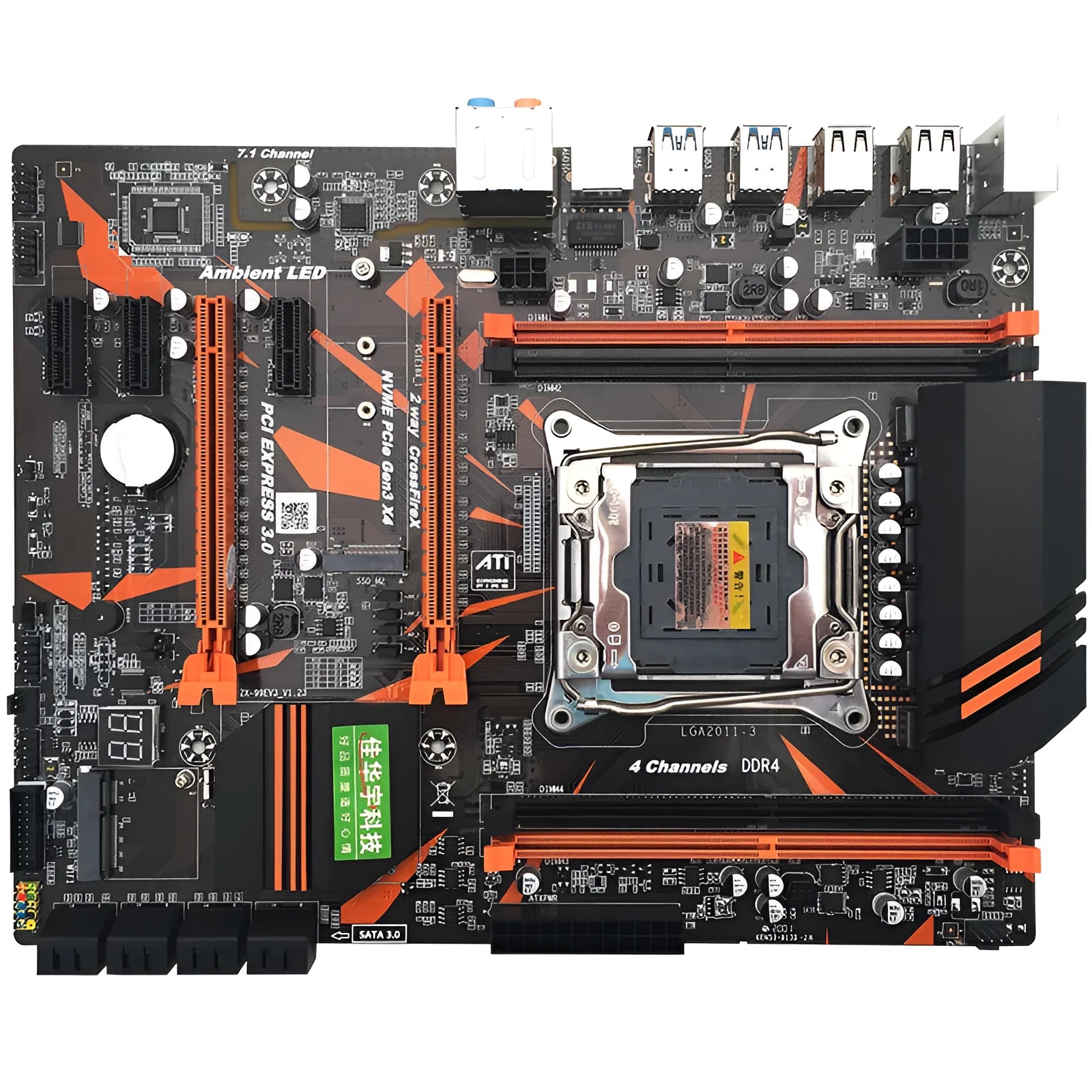

X99 Chipset Motherboard for LGA2011-3 CPUs with Quad-Channel DDR4 and M.2 Support

This ATX form factor motherboard is built around the Intel X99 chipset, providing a core platform for enthusiasts and professionals using Intel's LGA2011-3 socket processors. It is specifically designed to support the high-core-count 2011-v3 series, including Intel Core i7 CPUs like the 5820K and 5960X, as well as Xeon E5 v3 series processors. The board's design prioritises expansion and stability, featuring four memory channels, multiple high-speed storage options, and robust power delivery to handle demanding workloads, from content creation to computational tasks.

Features and Construction

The motherboard integrates key components for a complete system foundation, minimising the need for additional cards for basic functionality. Its layout and included features are geared towards providing a reliable and expandable base for a high-end desktop computer.

Material and Build

The board is constructed on a standard PCB with integrated controller chips for audio and networking, removing the need for separate sound or network cards for most users. It employs a 4-phase power design to ensure stable voltage delivery to the CPU. For troubleshooting, it includes practical diagnostic tools: an 8-LED colour audio indicator lamp, a digital fault code display, and a system buzzer, all of which aid in identifying post issues during assembly or operation.

Size and Practical Fit

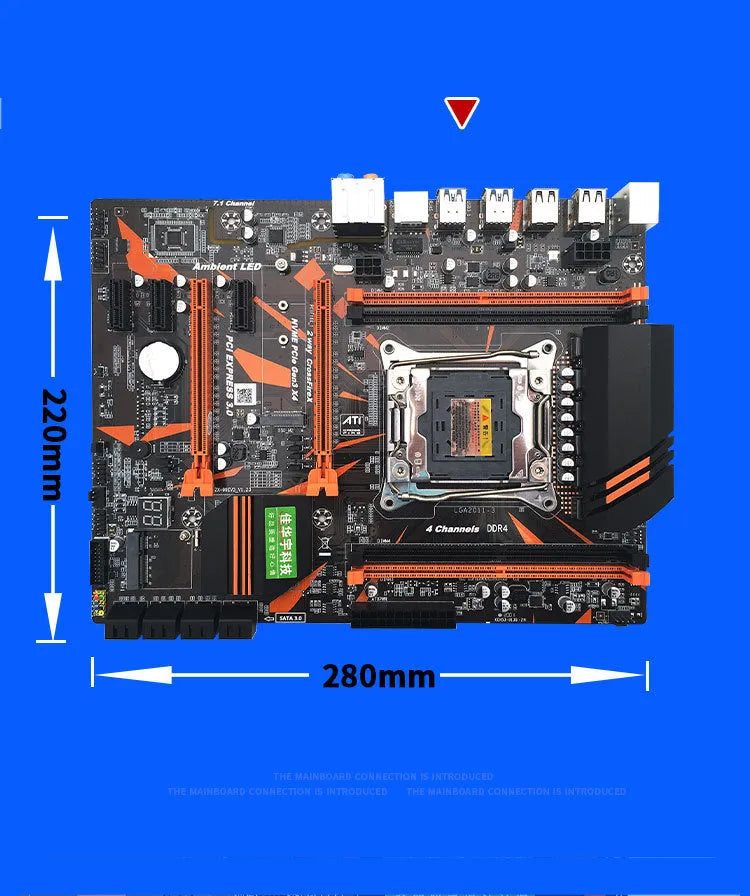

The motherboard conforms to the standard ATX size specification, ensuring compatibility with the majority of mid-tower and full-tower PC cases designed for ATX boards. The rear I/O shield is pre-configured with a comprehensive set of ports, including four USB 3.0 and two USB 2.0 ports, a PS/2 keyboard/mouse combo port, an RJ45 Gigabit Ethernet port, and the necessary jacks for the integrated 7.1 channel audio. It is important to note that the colour of the slot backing plates may vary between different production batches as part of ongoing product optimisation.

Uses and Placement

This motherboard is suited for users building systems that require the specific capabilities of the LGA2011-3 platform, which offers more PCIe lanes and memory channels than mainstream consumer sockets. Its feature set supports both professional applications and high-end enthusiast gaming or workstation builds.

Event or Professional Use

For professional workstations, the support for Xeon E5 v3 series processors and ECC (Error-Correcting Code) memory—when using a compatible Xeon CPU—makes it suitable for data-sensitive tasks, scientific computing, or server applications where data integrity is critical. The dual PCI-E x16 slots allow for multi-GPU configurations, which are beneficial for GPU-accelerated rendering, machine learning, or financial modelling. The M.2 NVMe interface provides ultra-fast storage access, significantly reducing load times for large project files.

Everyday Home Use

For the advanced home user or enthusiast, the board supports powerful consumer-grade Intel Core i7 CPUs from the Haswell-E and Broadwell-E families. The four DDR4 DIMM slots enable large memory kits for multitasking, gaming, and video editing. The integrated 7.1 channel audio offers a solid sound solution for gaming and media playback without requiring an additional sound card. The onboard WiFi interface header allows for the easy installation of a wireless module if a wired network connection is not available.

Benefits and Buying Value

The value of this motherboard lies in its targeted support for a specific, high-performance CPU platform and its inclusion of modern connectivity standards. It balances core functionality with useful expansion for users who need the capabilities of the X99 chipset.

Reuse and Low Maintenance

The board's three-year warranty provides a period of guaranteed support, structured as one year of free service followed by two years of maintenance available at a cost. This long-term warranty indicates a commitment to product reliability. The use of standardised connectors (24-pin ATX, 8-pin EPS) and the ATX form factor means it can be paired with a wide range of standard power supplies and PC cases, offering flexibility for future upgrades or case changes.

Why Choose This Product

This motherboard is a practical choice for anyone requiring the LGA2011-3 socket, particularly for builds centred on available second-hand or existing Intel Core i7-58xx/59xx or Xeon E5-26xx v3 series processors. Its key advantages are the native support for quad-channel DDR4 memory, which doubles the memory bandwidth of dual-channel systems, and the inclusion of a high-speed M.2 NVMe slot, a feature not always present on older X99 boards. The integrated diagnostics simplify the building and troubleshooting process, saving time and effort.
