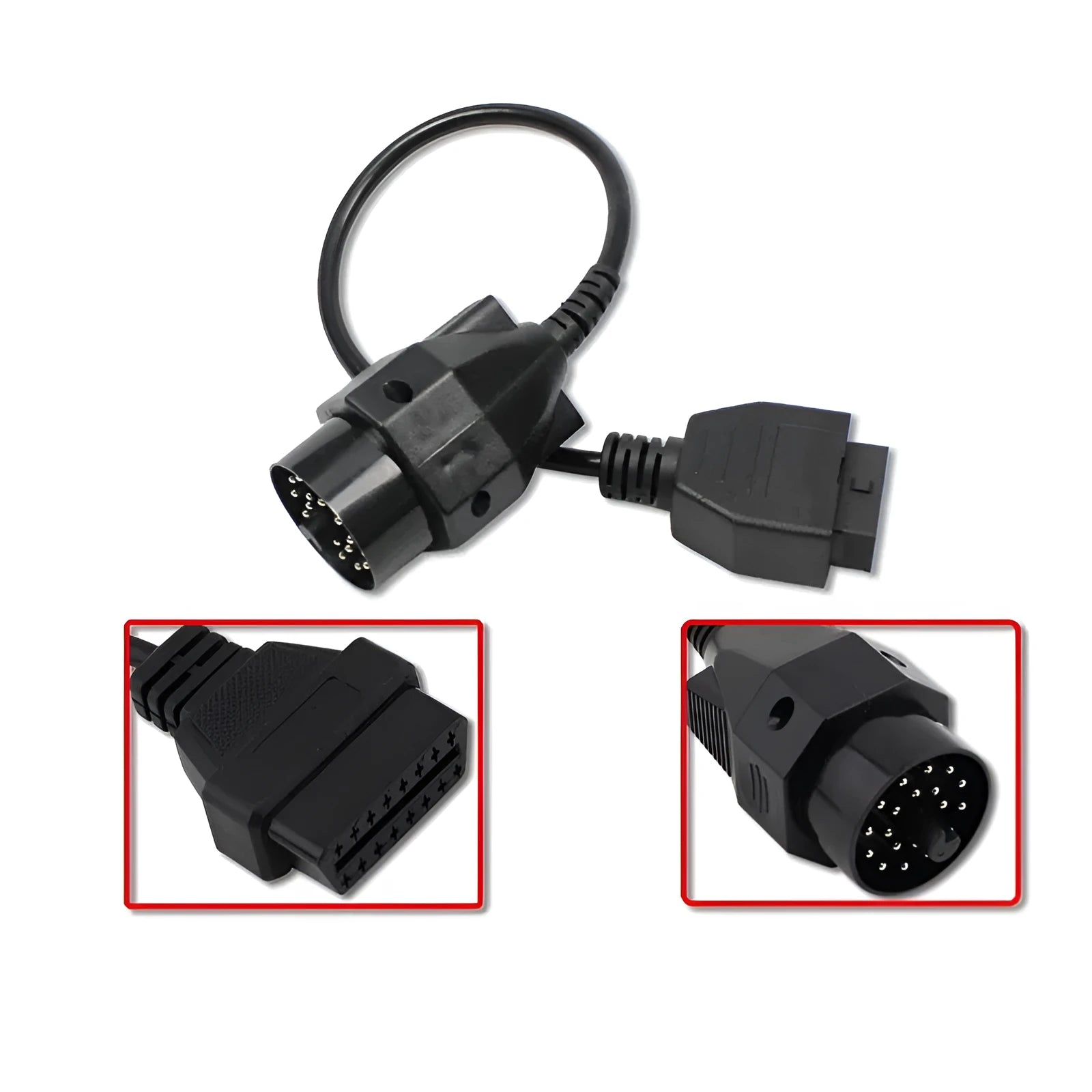

BMW OBD2 Diagnostic Connector Cable: 20-pin to 16-pin adapter for vehicle scanning

This OBD2 connector cable serves as a practical interface conversion tool for BMW vehicle owners and technicians who need to connect standard diagnostic equipment to vehicles equipped with BMW's proprietary 20-pin diagnostic port. The adapter bridges the gap between the manufacturer-specific 20-pin connector found on certain BMW models and the universal 16-pin OBD2 interface that has become the industry standard for emission testing and engine diagnostics. With its 12V voltage rating and specified 45°C operating temperature, this cable provides a reliable physical connection solution for accessing onboard vehicle data without requiring specialised BMW-specific scanning hardware.

Features and Construction

The connector cable presents a straightforward solution for diagnostic access, converting between two different automotive interface standards with minimal complexity. Its design focuses on providing the necessary electrical pathway between vehicle systems and diagnostic equipment while maintaining compatibility with standard automotive electrical parameters.

Material and Build

Constructed with electrical connector components suitable for automotive diagnostic applications, the cable features durable housing materials designed to withstand the vehicle environment. The 20-pin BMW connector end matches the configuration found on specific BMW models, while the 16-pin OBD2 connector follows the standardised interface pattern used by most aftermarket diagnostic tools. The wiring between connectors provides the necessary pin-to-pin mapping required for diagnostic communication.

Size and Practical Fit

The connector cable's specific length isn't detailed in the available information, but its design accommodates typical diagnostic scanning scenarios where equipment needs to reach the vehicle's diagnostic port location. The 12V voltage rating indicates compatibility with standard automotive electrical systems, while the 45°C operating temperature specification ensures reliable performance under normal vehicle operating conditions. The physical connectors are designed to mate securely with their respective ports, maintaining electrical contact during diagnostic procedures.

Uses and Placement

This adapter cable serves specific diagnostic purposes in both professional and DIY automotive settings. Its primary function enables diagnostic equipment compatibility that would otherwise require specialised tools or additional interfaces, making vehicle system access more accessible across different equipment types.

Event or Professional Use

For automotive technicians and repair professionals, this connector allows standard OBD2 scanning equipment to interface with BMW vehicles that utilise the 20-pin diagnostic port. This can streamline diagnostic workflows in workshops that service multiple vehicle brands, reducing the need for manufacturer-specific interface tools. The cable supports emission testing procedures, fault code retrieval, and live data monitoring through equipment that technicians may already possess and be familiar with operating.

Everyday Home Use

For BMW owners who perform their own vehicle maintenance or wish to monitor their vehicle's systems, this adapter enables the use of affordable consumer-grade OBD2 scanners and Bluetooth adapters. This provides access to engine diagnostics, emission readiness status, and various vehicle parameters that can help identify issues before they become serious problems. The straightforward connection process - simply plugging the appropriate ends into the vehicle and scanner - makes diagnostic access more approachable for vehicle owners without specialised automotive tools.

Benefits and Buying Value

The connector cable offers practical advantages in diagnostic accessibility and equipment compatibility. By serving as an interface between different automotive standards, it addresses a specific compatibility gap that can otherwise limit diagnostic options for certain vehicle owners and technicians.

Reuse and Low Maintenance

As a passive adapter cable without electronic components, this connector requires no power source, software, or configuration. It can be used repeatedly with different diagnostic equipment and on compatible BMW vehicles without degradation of function. The lack of moving parts or complex electronics translates to minimal maintenance requirements - simply ensuring clean connector contacts and proper storage when not in use. This simplicity contributes to long-term usability across multiple diagnostic sessions and potentially different vehicles.

Why Choose This Product

This connector addresses a specific compatibility need for BMW vehicles with 20-pin diagnostic ports, providing a dedicated solution where universal adapters might not offer the correct pin configuration. The specified 12V voltage rating and 45°C operating temperature indicate design considerations appropriate for automotive environments. For those needing to connect standard OBD2 equipment to compatible BMW vehicles, this cable offers a purpose-built interface solution that matches the documented specifications for this type of diagnostic conversion requirement.
