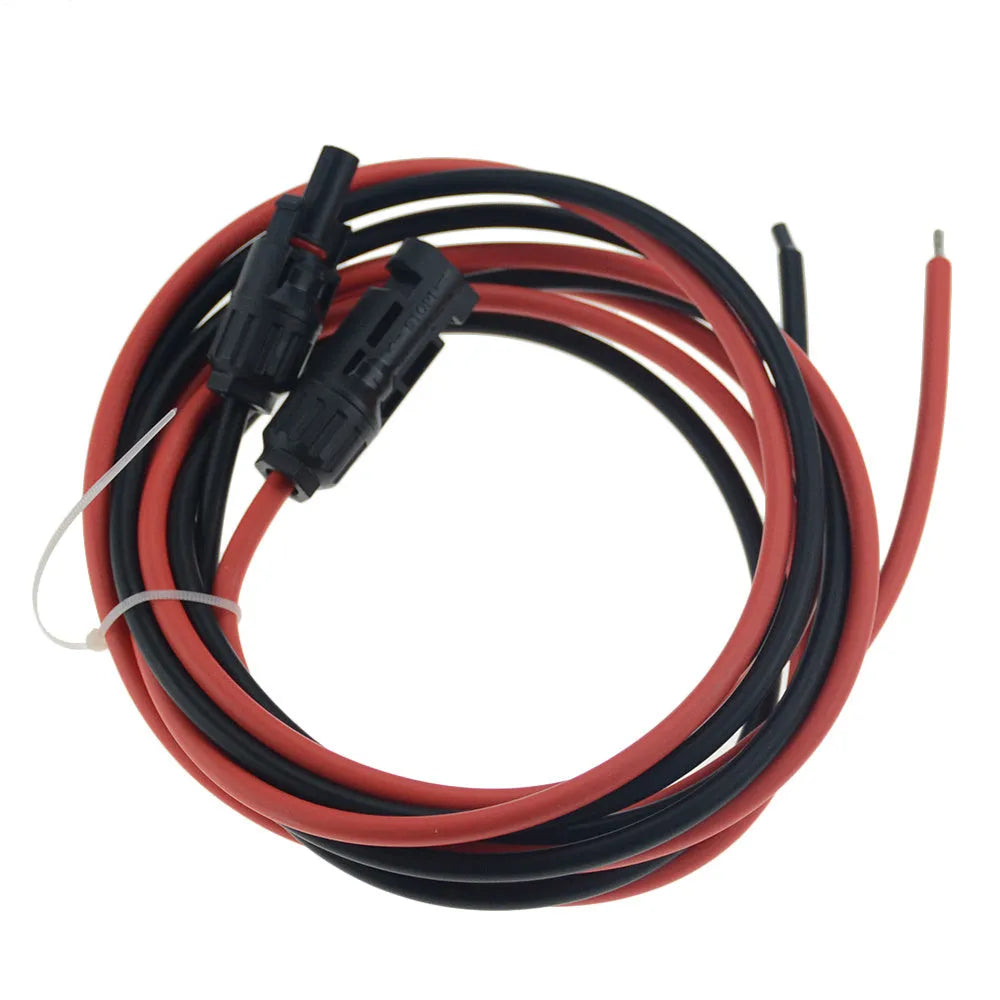

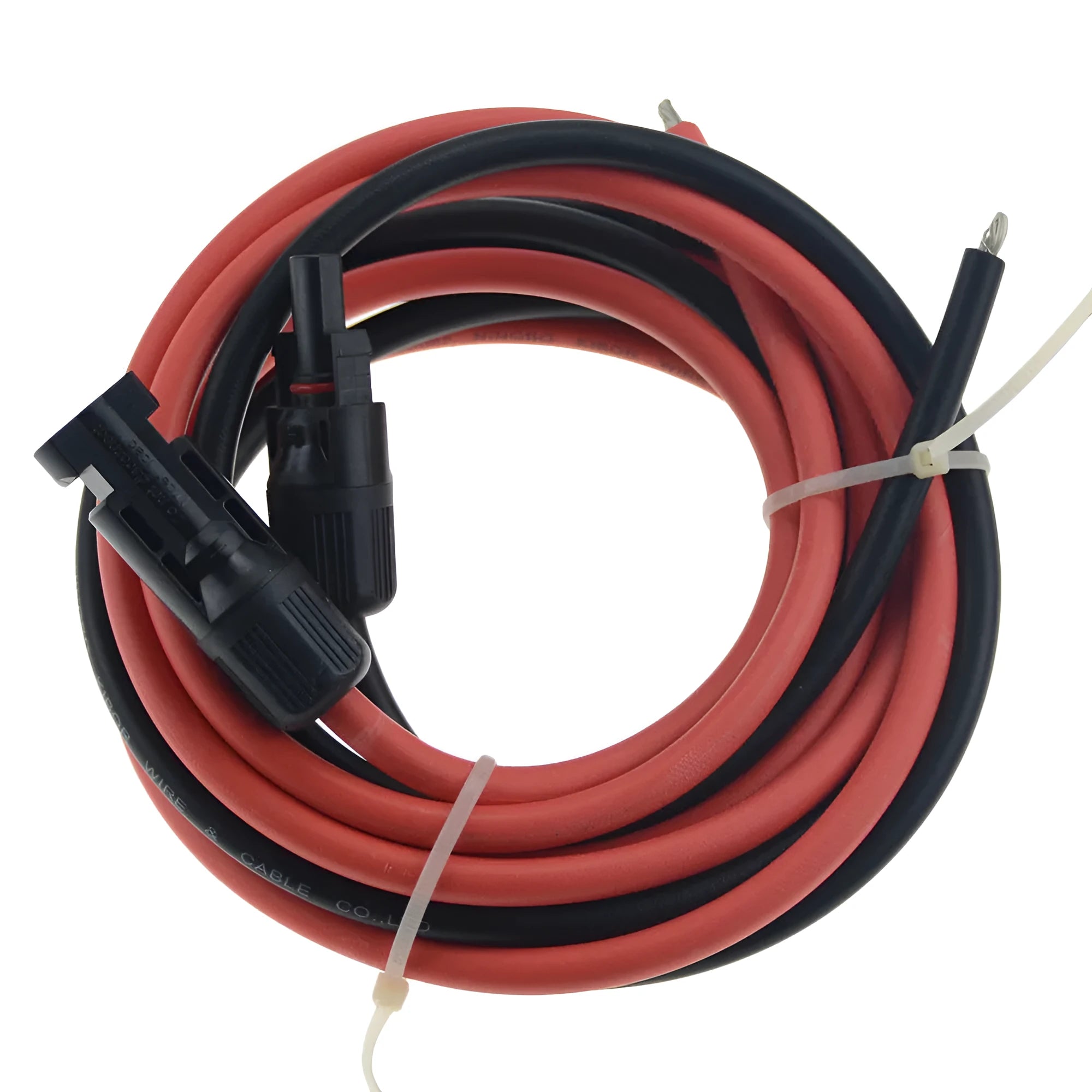

MC4 Connector Solar Extension Cable for Photovoltaic Systems in Multiple Lengths

This single-core photovoltaic extension cable is designed specifically for solar energy applications, providing a reliable link between panels, inverters, and other system components. It features standard MC4 connectors, which are widely used in the solar industry for secure, weather-resistant connections. The cable is constructed with practical safety in mind, utilising low-smoke halogen-free materials for both its insulation and outer sheath. This makes it a suitable choice for installations where reduced toxic fume emission is a consideration. Available in a selection of standard lengths and two sheath colours, it offers flexibility for various system layouts and identification needs.

Features and Construction

This cable is built to facilitate efficient energy transfer in solar power setups. Its construction prioritises both performance and a degree of safety, using materials chosen for their specific properties in electrical applications.

Material and Build

The core of the cable is made from tinned copper wire. The tinning process helps protect the copper from oxidation and corrosion, which can be beneficial for long-term reliability in outdoor environments. The insulating layer and the outer sheath are both manufactured from low-smoke halogen-free (LSHF) material. This type of material is known to produce less smoke and fewer toxic halogen gases if exposed to fire compared to some standard PVC compounds, contributing to a safer installation environment, particularly in enclosed or semi-enclosed spaces like lofts or garages.

Size and Practical Fit

The cable is available with a nominal cross-sectional area ranging from 2.5mm² to 6mm², allowing it to handle different current requirements. Its maximum outer diameter falls between 2.5 mm and 6 mm. To accommodate different distances between solar components, it is offered in five convenient pre-cut lengths: 1 metre, 2 metres, 3 metres, 5 metres, and 10 metres. This selection helps minimise waste and simplifies installation planning. The sheath colour options of black or red provide basic colour-coding for positive and negative connections if desired.

Uses and Placement

This cable serves a dedicated function within renewable energy systems. Its design and specifications align with common requirements for connecting photovoltaic (PV) equipment.

Event or Professional Use

For professional solar installers and technicians, this cable provides a standardised, ready-to-use component for extending runs between solar panels wired in series or for connecting arrays to combiner boxes. The MC4 connectors ensure compatibility with most modern solar panels, saving termination time on-site. The availability of different lengths allows installers to select the exact cable needed for a clean, tidy installation without excessive slack or tension.

Everyday Home Use

For homeowners or DIY enthusiasts installing or expanding a solar power system, this pre-assembled extension cable simplifies the process. There is no need for specialised crimping tools to attach MC4 connectors. Choosing the correct length from the available options helps create a neat installation for rooftop, ground-mount, or balcony solar setups. The specified voltage rating of up to 35 kV covers standard residential solar system voltages.

Benefits and Buying Value

The value of this product lies in its application-specific design and the practical choices offered in its configuration.

Reuse and Low Maintenance

The robust MC4 connectors and sheathed cable construction are designed for long-term outdoor use. The tinned copper core offers inherent protection against corrosion. As a complete assembly, the cable requires no ongoing maintenance beyond periodic visual checks for damage, making it a reliable, set-and-forget component within a solar array.

Why Choose This Product

This cable offers a straightforward solution for extending solar panel connections. Its key advantages are its direct compatibility with ubiquitous MC4 connectors, the safety-oriented low-smoke halogen-free materials, and the convenience of multiple pre-defined length options. It eliminates the guesswork and additional labour of custom cable assembly for common extension scenarios in photovoltaic systems.
