Bluetooth 5.0 Automotive Tire Pressure Monitor Body External Type IP67 Waterproof 100-1300kPa Range 3-5 Year Battery Life Black Sensor Kit
Bluetooth 5.0 Automotive Tire Pressure Monitor Body External Type IP67 Waterproof 100-1300kPa Range 3-5 Year Battery Life Black Sensor Kit
Bluetooth 5.0 Automotive Tire Pressure Monitor Body with IP67 Waterproof External Sensor

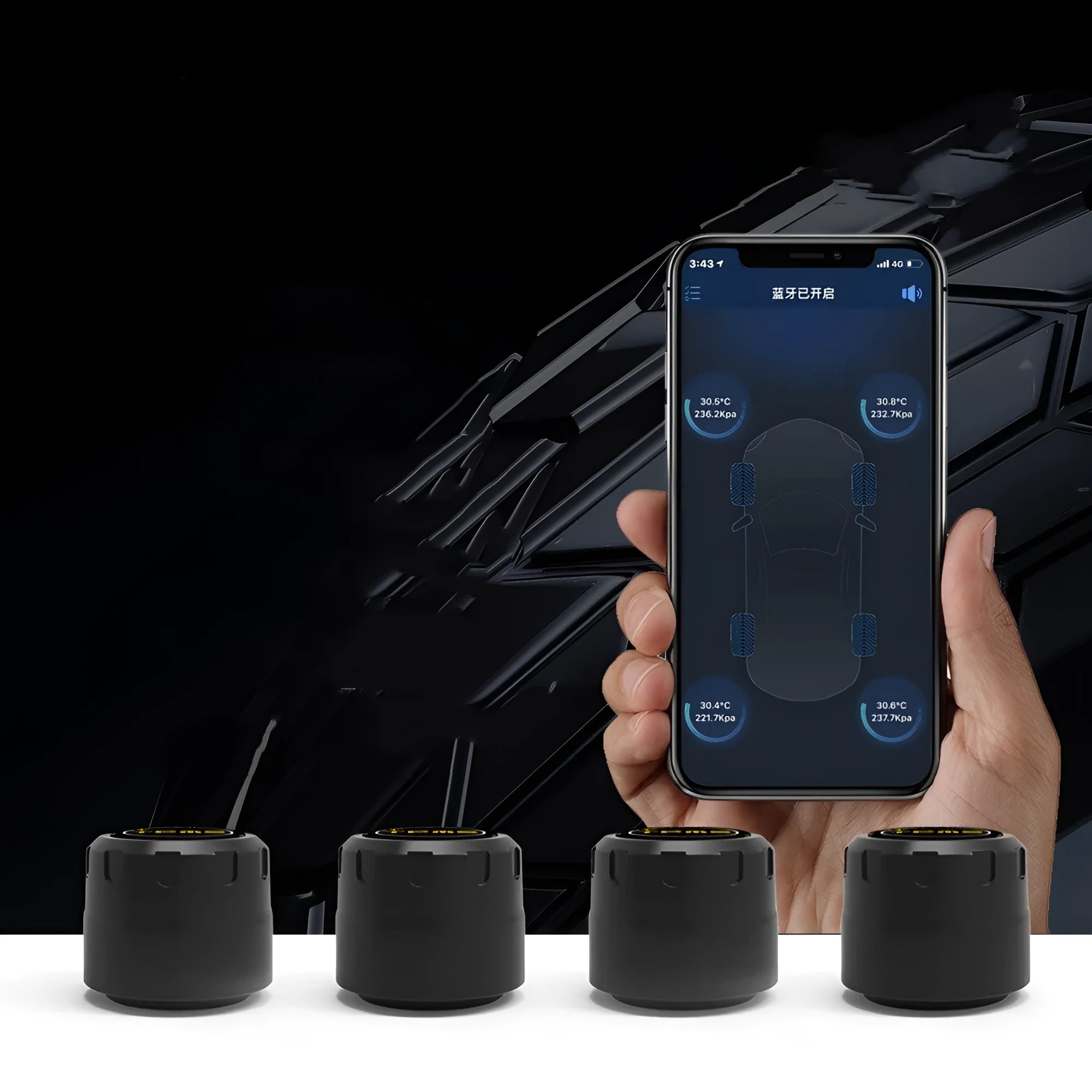

This automotive tire pressure monitor body is engineered to provide accurate and reliable data for vehicle safety. Utilising Bluetooth 5.0 communication, the system transmits pressure and temperature readings efficiently to compatible display units or smartphones. The external design facilitates easy installation and maintenance without requiring internal tire access. With a robust construction rated IP67, these sensors resist water and dust ingress, making them suitable for all-weather driving conditions. The kit provides a complete solution for monitoring four tires, ensuring consistent pressure levels that contribute to fuel efficiency and tire longevity.
Technical Specifications and Accuracy
The core functionality of this monitor relies on high-precision sensors capable of detecting a wide range of pressure values. The system is calibrated to operate effectively within specific environmental limits, ensuring data integrity regardless of external stressors.
Pressure Detection Range
The sensor units support a tire pressure detection range from 100 to 1300kPa, covering the requirements of most standard passenger vehicles and light commercial trucks. The detection accuracy is maintained at ±10kPa, allowing drivers to identify even minor pressure deviations that could affect handling or fuel consumption. This level of precision helps in maintaining optimal tire inflation as recommended by vehicle manufacturers.
Temperature Monitoring Capabilities
In addition to pressure, the device measures tire temperature with an accuracy of ±3°C. Monitoring temperature is critical as excessive heat can indicate under-inflation or overloading, which are common causes of tire failure. The external placement of the sensor allows it to react quickly to changes in the tire's thermal state, providing timely alerts to the driver.
Environmental Resilience
Designed for durability, the working temperature range extends from -30°C to +70°C. This broad spectrum ensures that the monitor remains functional in freezing winter conditions or during hot summer drives. The storage temperature matches this range, meaning the units can be kept in a vehicle glovebox or garage without risk of damage due to temperature fluctuations.
Design and Build Quality
The physical construction of the monitor body prioritises both compactness and ruggedness. The external type design simplifies the installation process, requiring only basic tools which are included in the package.

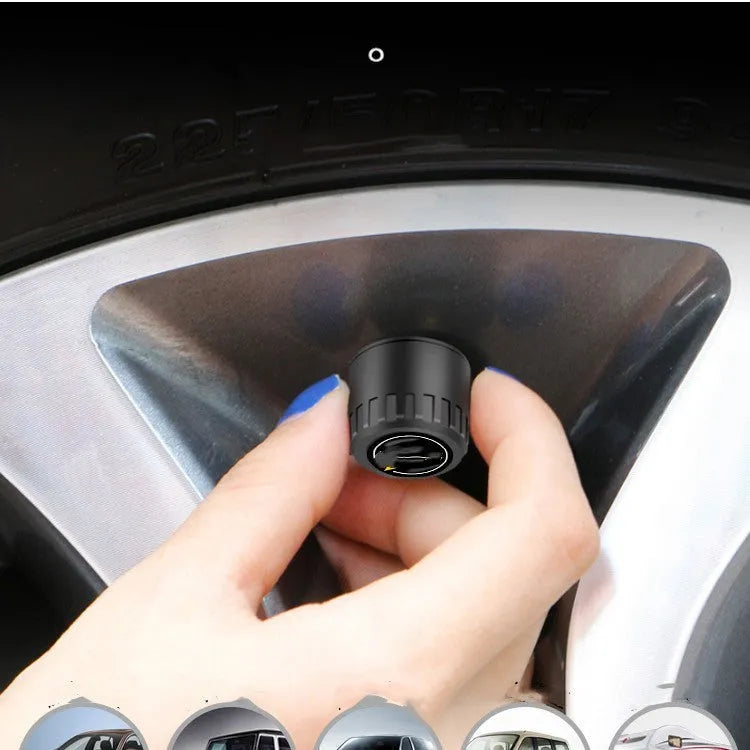

Compact External Form Factor
Each monitor unit measures 21.8mm by 18.4mm, making it unobtrusive once installed on the valve stem. The small footprint reduces the risk of interference with wheel rims or brake components. Despite its small size, the unit houses a 140mAh battery that supports extended operation without frequent replacements.
Waterproof and Dustproof Protection
Featuring an IP67 waterproof grade, the monitor body is sealed against dust particles and can withstand temporary immersion in water. This rating is essential for automotive applications where sensors are exposed to road spray, puddles, and car washes. The black casing is designed to blend with the wheel assembly while resisting UV degradation and physical impact.
Installation and Maintenance
The package is designed for straightforward setup, providing all necessary components for a secure fit. The inclusion of anti-theft screws adds a layer of security to prevent unauthorised removal of the sensors.
Battery Life and Power
Powered by a 140mAh battery, each external unit is designed to last between 3 to 5 years under normal operating conditions. This long lifespan reduces the maintenance burden on the vehicle owner, eliminating the need for annual battery changes common in some lower-capacity systems. The power management system ensures that energy is conserved when the vehicle is stationary.

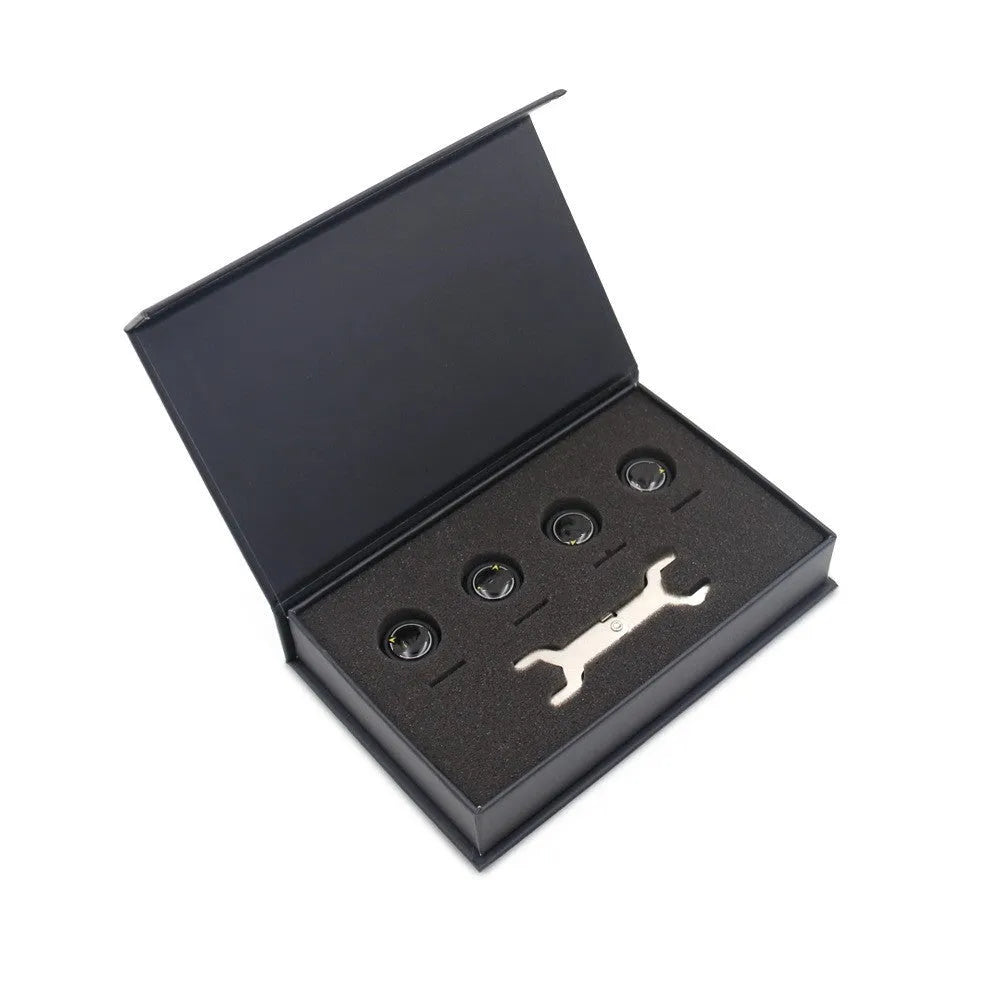

Complete Installation Kit
The package contents include four tire pressure monitors, one wrench, and four anti-theft screws. The wrench is specifically sized for the unit, allowing for easy tightening and removal during tire rotations or replacements. The anti-theft screws ensure that the valuable monitoring equipment remains attached to the vehicle, deterring theft in public parking areas.
